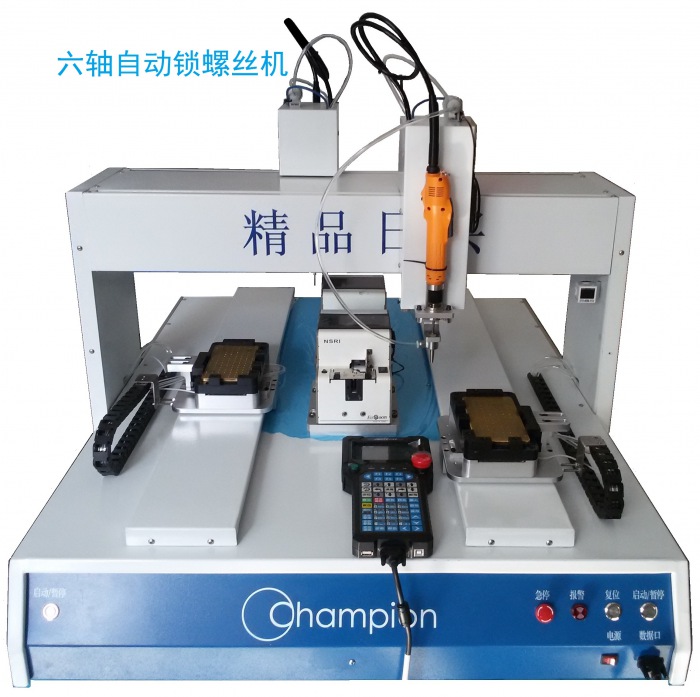

Machine Features

    ◆Structure with double x/y/z axes,two work table and two screwdriver doubles the efficiency of the machine

      ◆Especially suitable for the products with two types of screws

      ◆Can equipped with a unloading robot,greatly improving operational flexibility

      ◆Rotating screw feeding method can avoid screw jamming.

      ◆Feedback functions,such as missing tightening,slide tightening and fload tightening can reduce workload of QC
 ◆By changing fixtures,difference products can be processed on one machine,which improves the efficiency of machine utilization
 ◆Teach pendant can set working program easily.

     机器规格
◆机器尺寸（mm）：800*1200*800
◆工作范围（mm）：300*300
◆行程范围（mm):700(双X）*920（双Y）*100（双Z）
◆驱动方式：步进电机+同步带
◆最快进给速度：1000mm/s
◆重复定位精度：0.02mm
◆电批转速：1000/2000rpm
◆机器重量：约80KG

选配功能
1.自动下料机械手
2.旋转夹具
3.吹气式供螺丝系统
4.丝杠式传动
